Daisy Seed2 DFM¶
Tech Specs Assets Pinout Buy (Commercial Accounts Only)
Technical Specs¶
- ARM Cortex-M7 MCU, Running at 480MHz
- 96kHz/24-Bit Stereo Audio Hardware
- 64MB of RAM (Up to 10 minute long audio buffers)
- 8MB of Flash Memory
- GPIO x33
- 16-Bit ADC x14
- 12-Bit DAC x2
The Daisy Seed2 DFM is the commercial solution for integrating Daisy into mass production. With an ultra low profile, and through-hole free design, the Seed2 DFM can fit into any enclosure or on any carrier board.
With the new audio codec and differential outputs, the Seed2 DFM boasts higher fidelity audio than its predecessor. And, just like the Daisy Seed, the Seed2 DFM is backed by an impressive library of resources, bespoke evaluation platforms, and a community of commercial users incorporating DSP hardware in their product lines. The Seed2 DFM was designed to be software compatible with the original Daisy Seed.
With the new audio codec and differential outputs, the Seed2 DFM boasts higher fidelity audio than its predecessor. And, just like the Daisy Seed, the Seed2 DFM is backed by an impressive library of resources, bespoke evaluation platforms, and a community of commercial users incorporating DSP hardware in their product lines. The Seed2 DFM was designed to be software compatible with the original Daisy Seed.

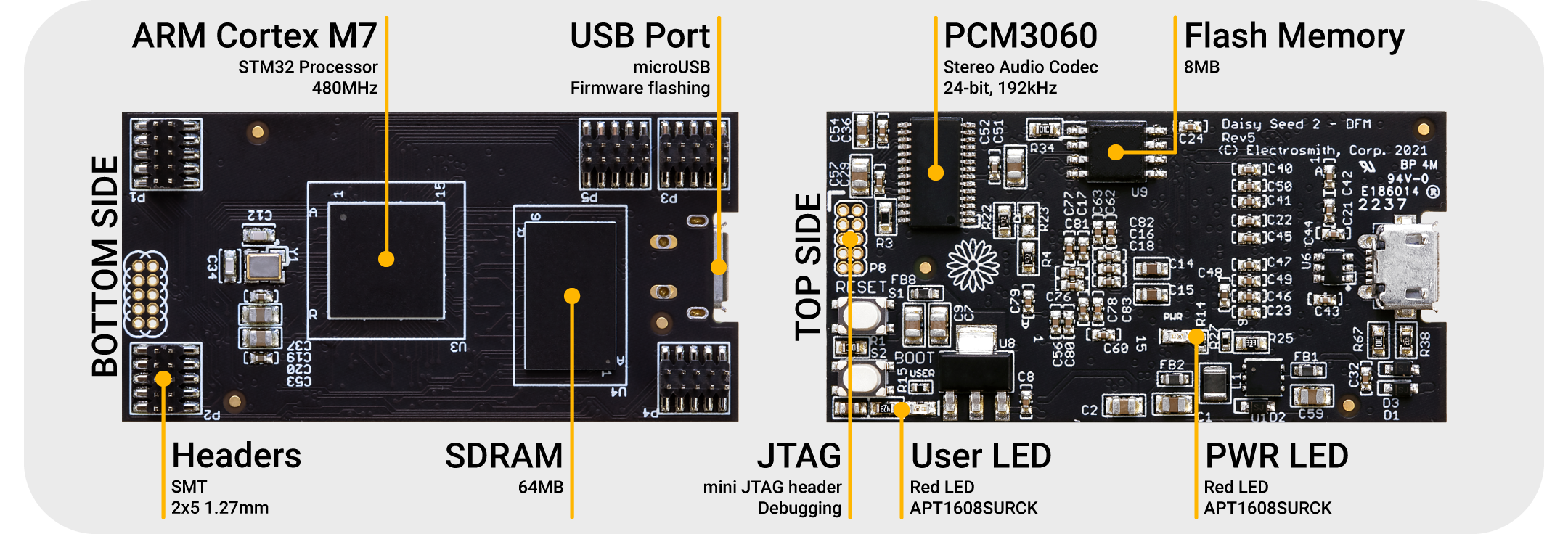

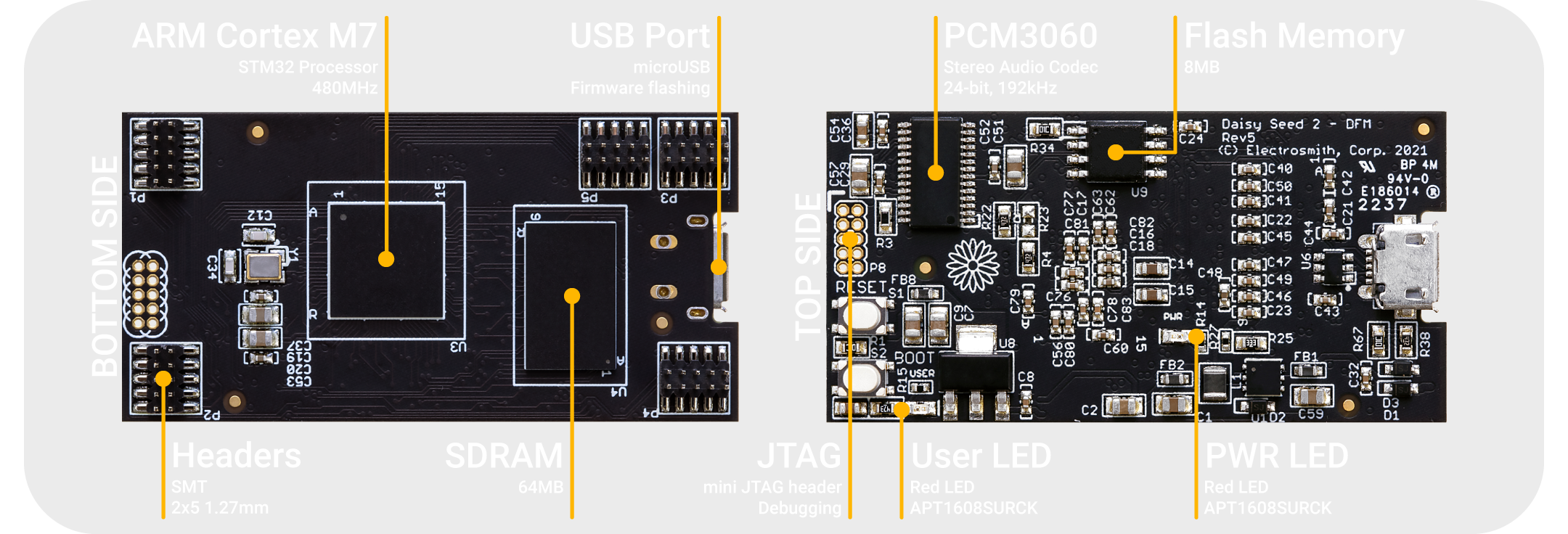

Under the Hood¶
Assets¶
Technical Documents¶
Datasheet Schematic PDF Pinout PDF Pinout CSV
CAD Files¶

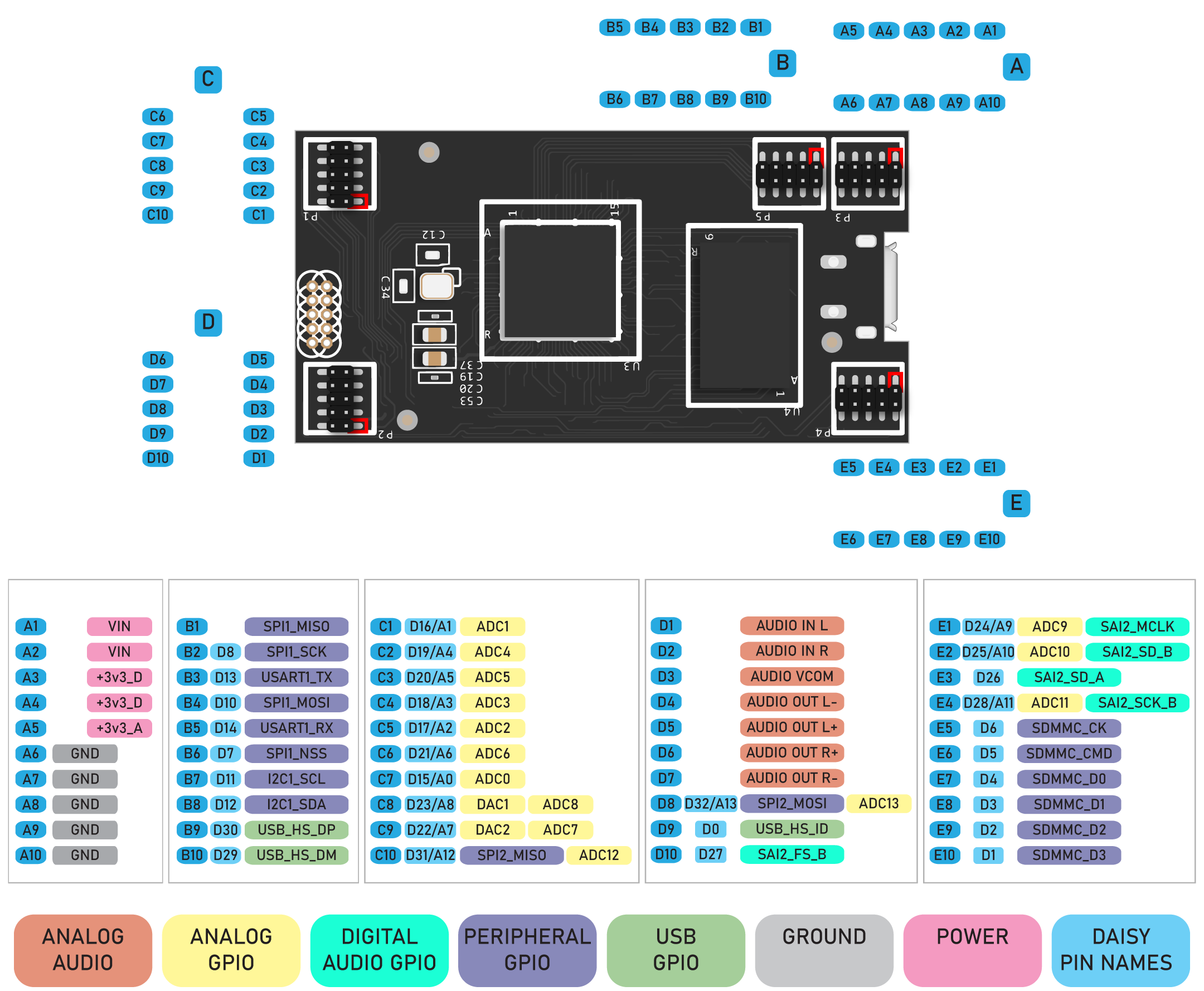

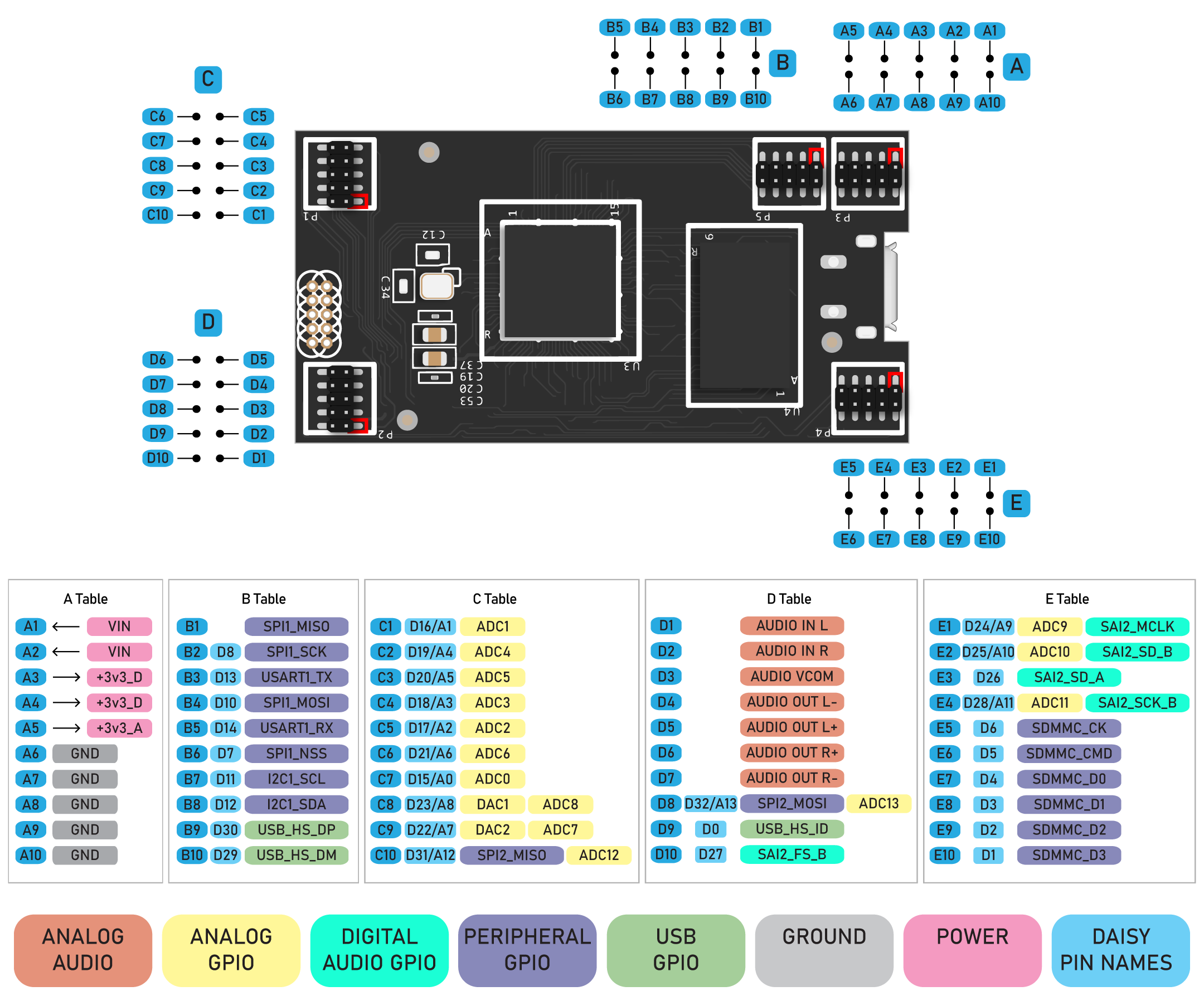

Pinout¶
For secondary pin functions, download the datasheet.
