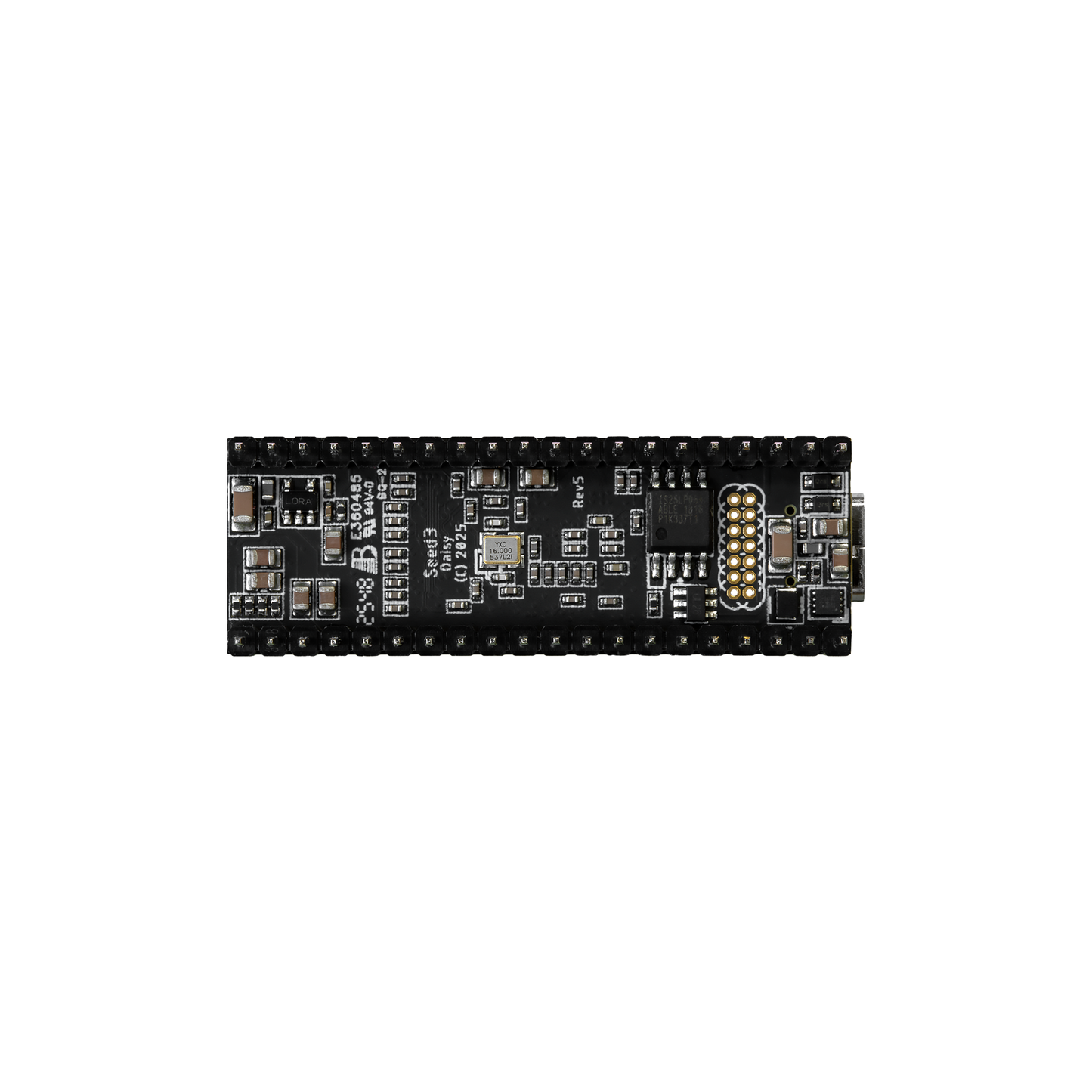

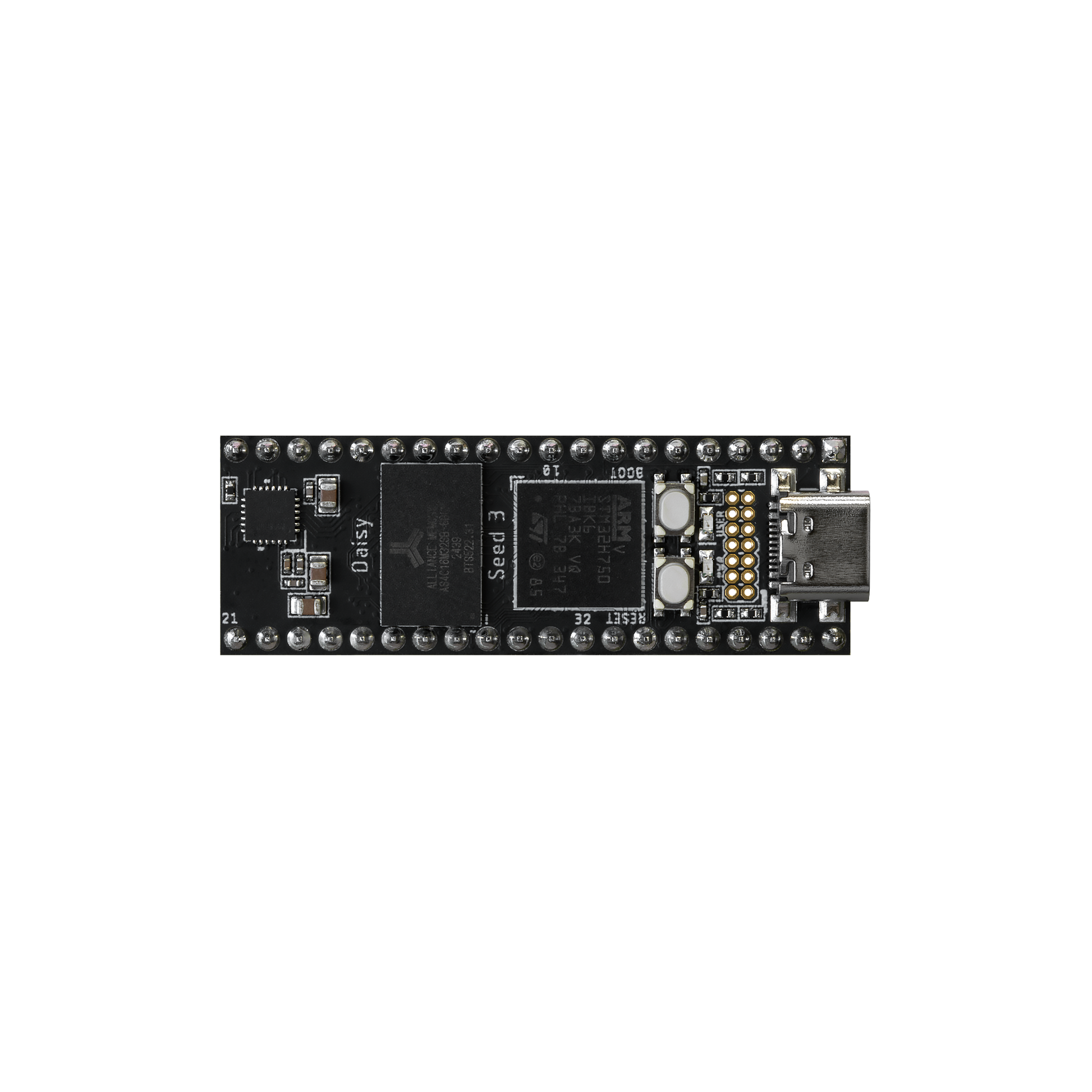

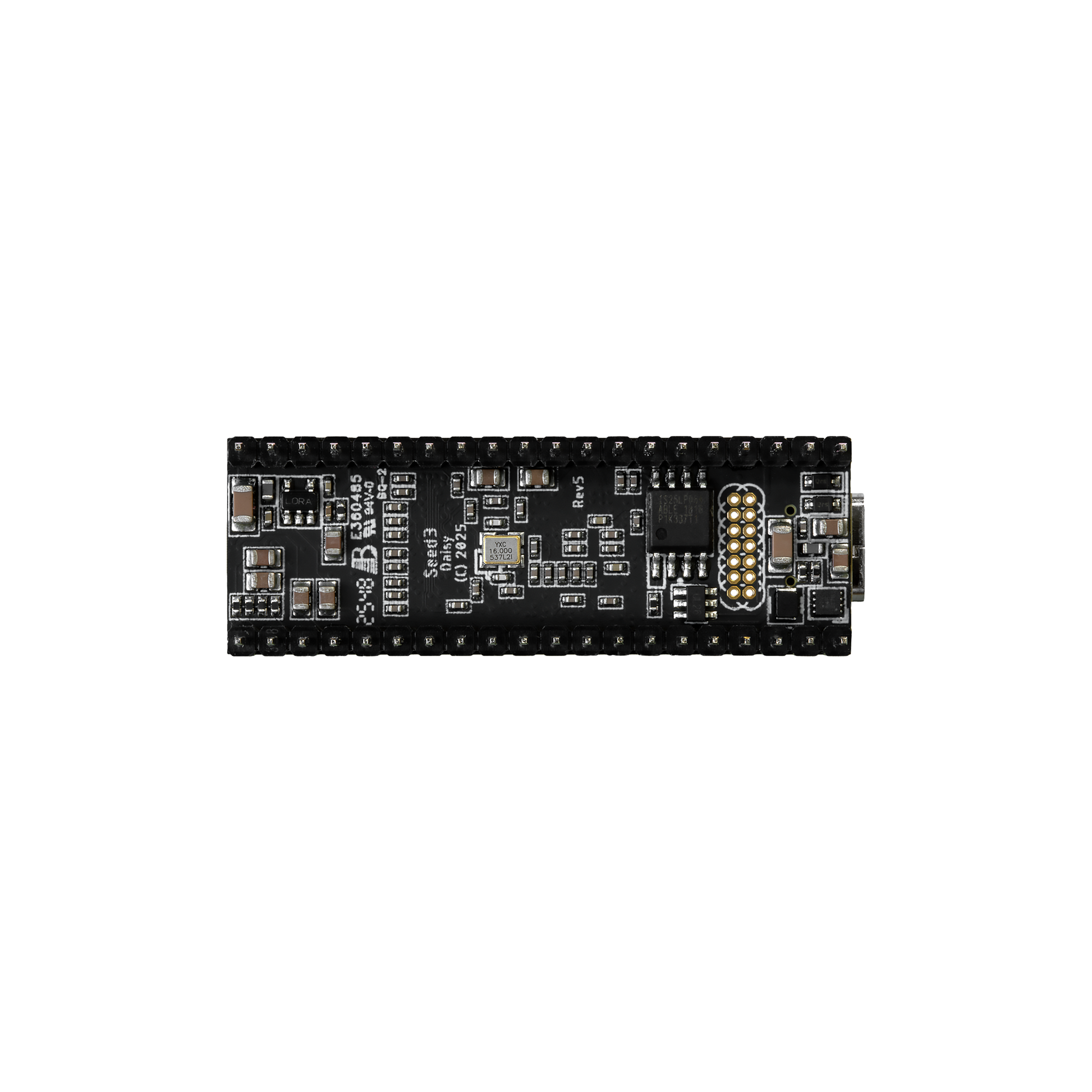

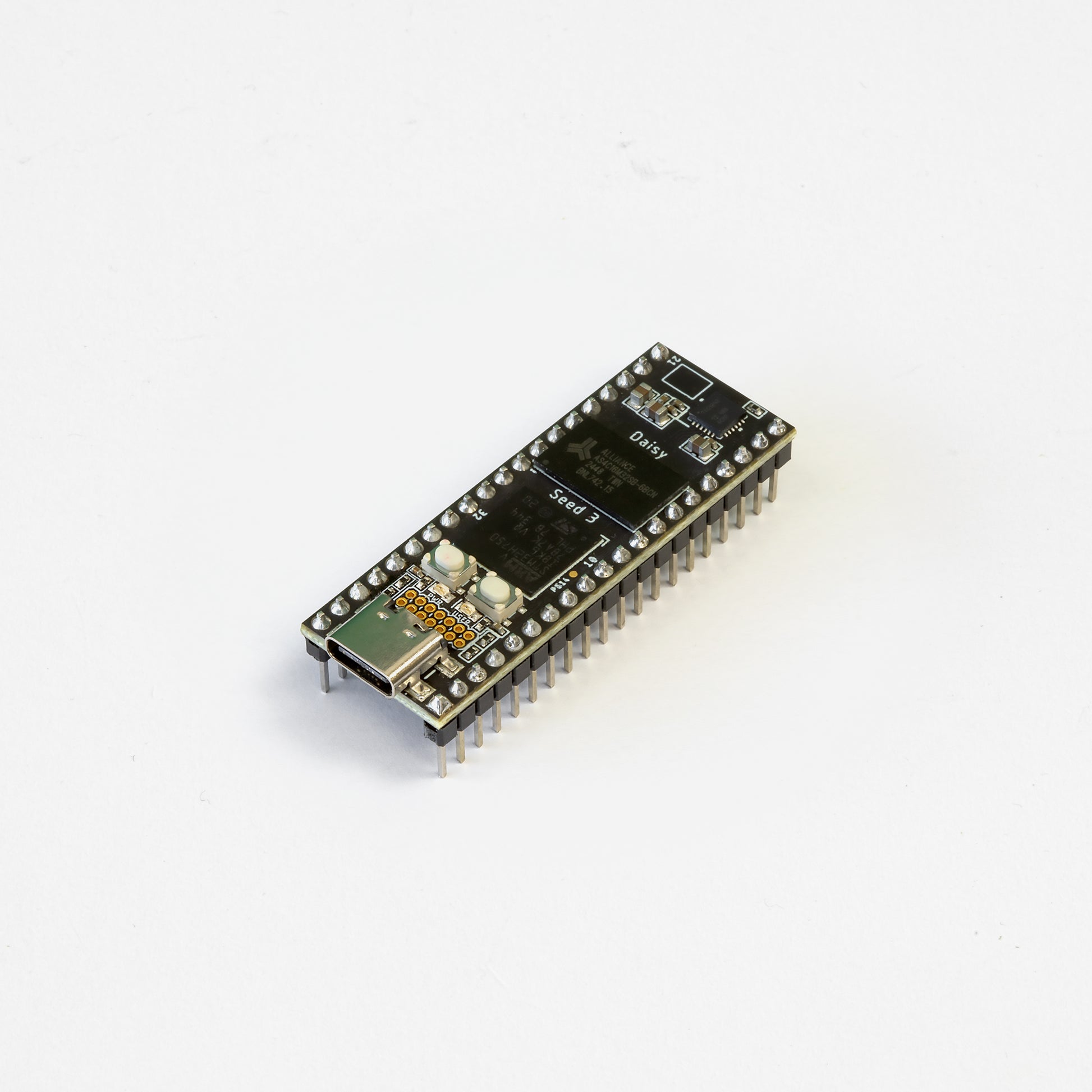

Seed3

Seed3 is the next generation of Daisy hardware. It features a new audio codec boosting audio fidelity to 32-bit, 192kHz, for a crystal clear audio experience. The Seed3 also carries an onboard USB-C port for data transfer and powering. All this while maintaining pin-to-pin compatibility with the original Seed pinout and footprint.

Prototype today, and ship tomorrow. The Seed3 is both breadboard-ready and designed for embedded commercial applications.

• Stereo audio IO - 192kHz / 32-bit audio hardware (AC-Coupled)
• Programmable in: C++, Arduino, Max/MSP gen~, Pure Data

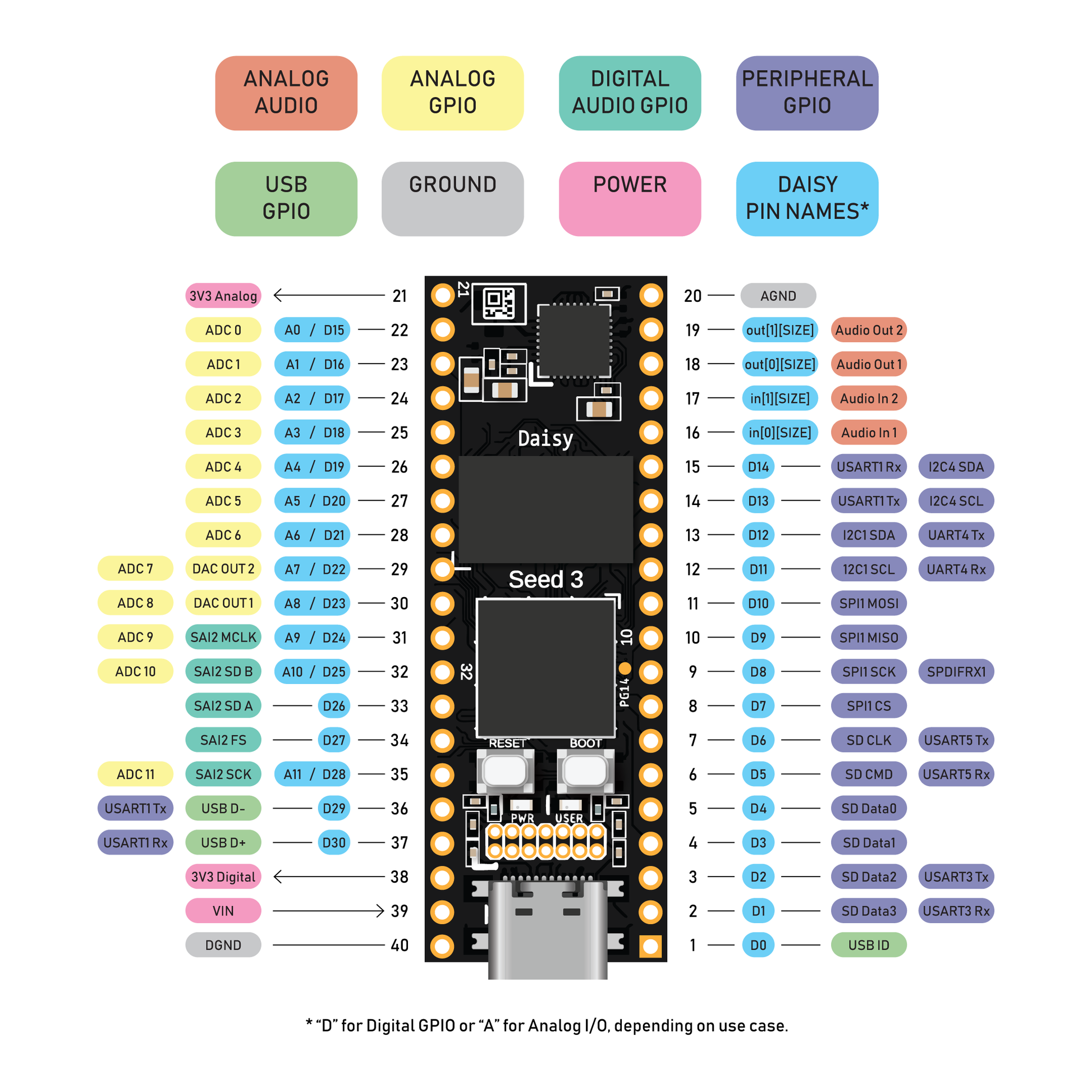

• x31 GPIO, x12 ADC inputs (16-bit), x2 DAC outputs (12-bit, DC-Coupled)
• ARM Cortex-M7 MCU, running at 480MHz
• 65MB of SDRAM for up to 10 minute long audio buffers, 8MB external flash
• SD card interface, PWM outputs, and various serial protocols for external devices (SPI, UART, SAI/I2S, I2C)
• USB-C port for powering and data transfer
• Dedicated VIN pin for external power

Documentation and Technical Assets: daisy.audio
